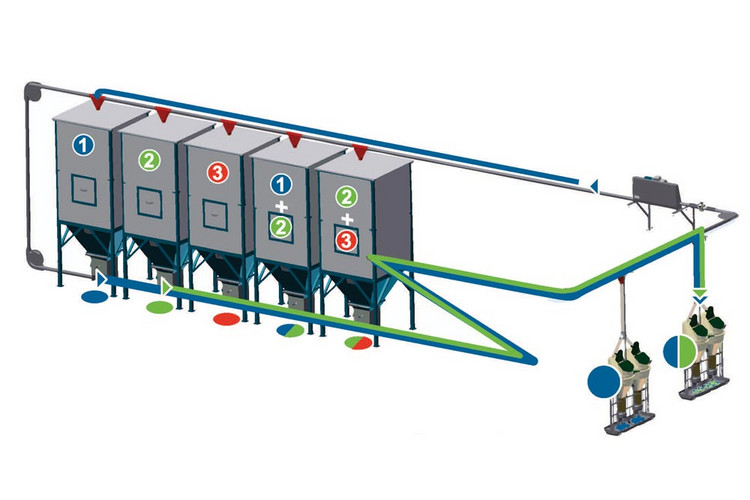

Multifase dry feeding animation

Multi-phase feeding with sliding feed change
FunkiNet Dry Multi

FunkiNet Dry Multi is our multi-phase feeding system, that makes it possible to have a sliding change between the feed mixes. The pigs get feed according to the multi-phase feeding curves.

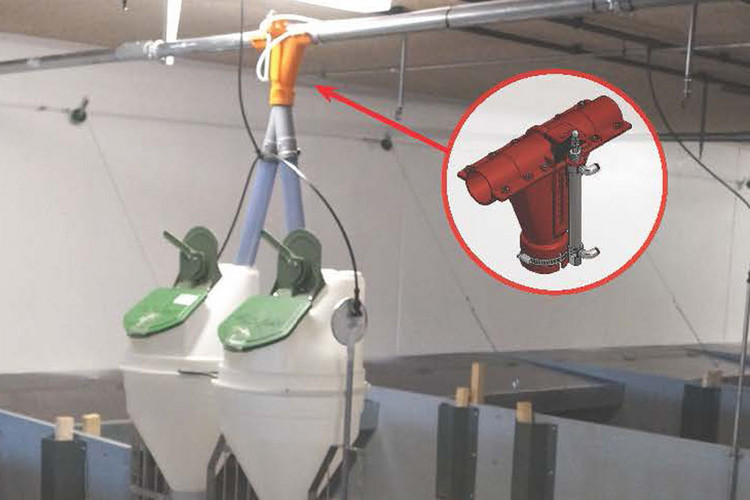

The sliding feed change is made by the reception unit or flexible auger, whille the silo is speed controlled, so that the feed mixes are mixed in the feed pipes.

The system has high capacity since it makes the mixture done before switching to the next mixture.

FunkiNet Dry Multi

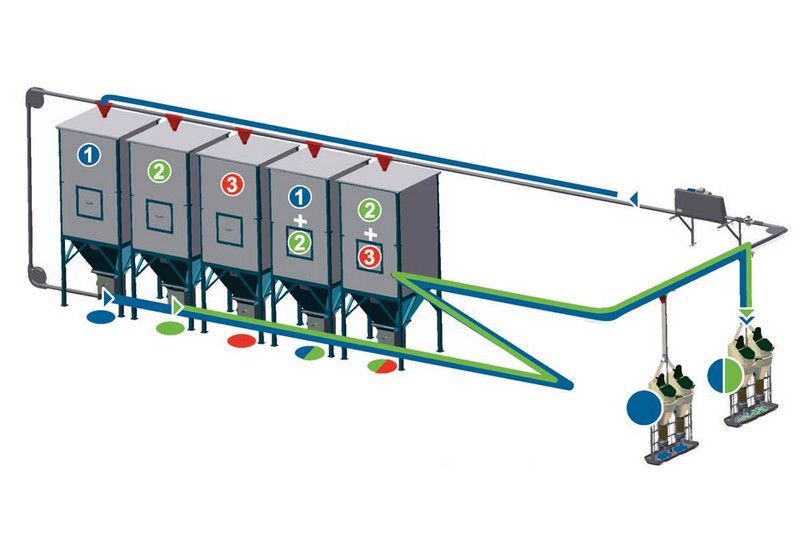

Multifase dry feeding animation
1 / 2
  • Large capacity
  • Feeding by section/pen
  • Sliding feed change
  • Less nitrogen and phosphorus emissions
  • Frequency-controlled reception unit
  • Higher feed intake
  • Frequency-controlled reception unit
  • Reception unit dispenses feed amounts based on the data entered in feed-computer
See animation

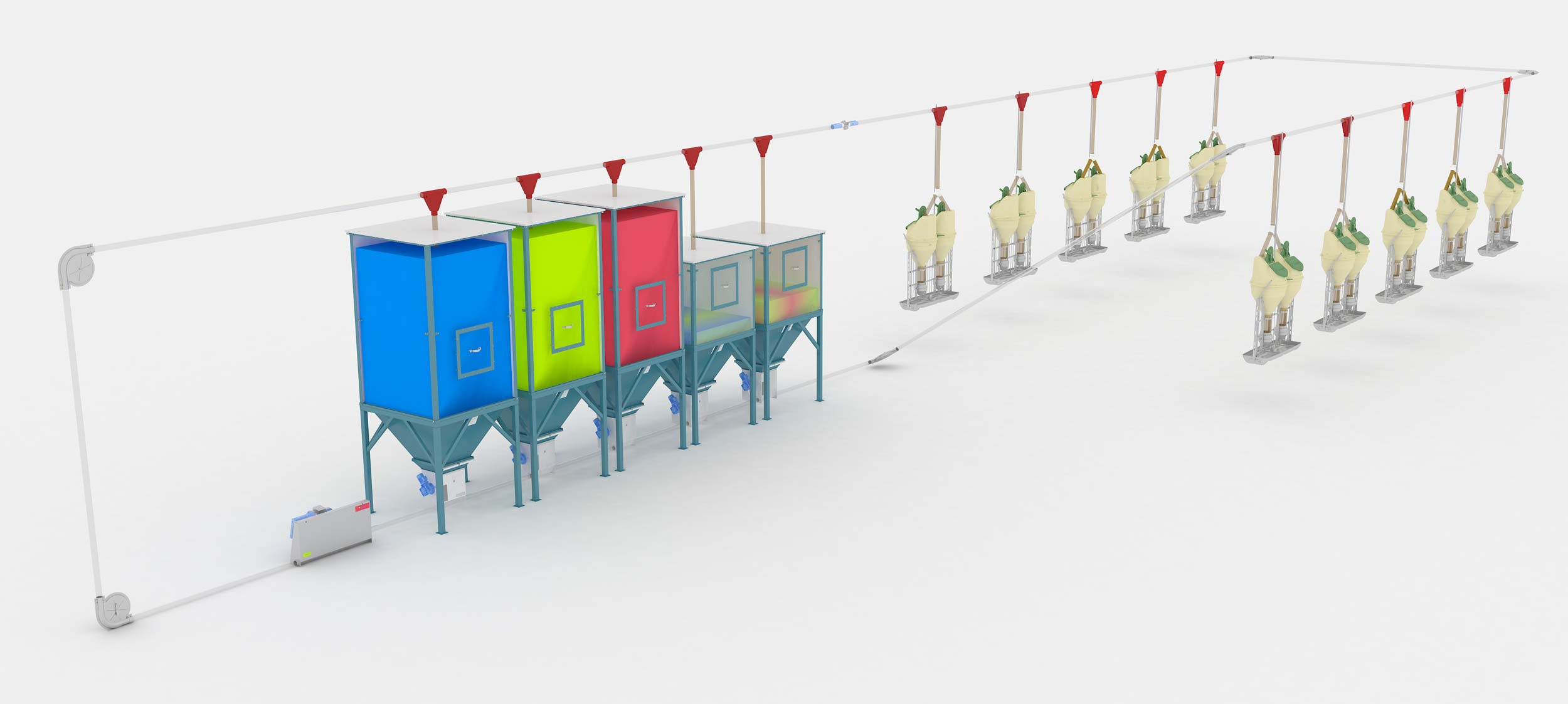

FunkiNet Dry Multi 3D
Drive capacity of the reception unit 60 mm, kg/min

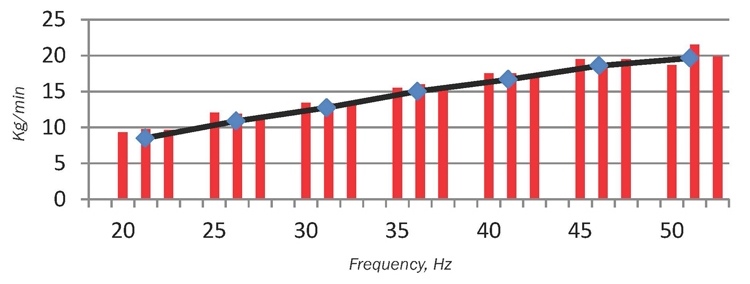

FunkiNet Dry Multi diagram
Test results of drive capacity for the reception unit 60 mm and average, kg/min
Frequency, Hz20253035404550
Kg/min9,34
9,77
9,64		12,07
11,89
11,40		13,44
13,38
13,60		15,50
16,00
15,50		17,52
17,55
17,07		19,48
18,90
19,50		18,65
21,50
19,85
Average, kg9,5011,7513,5015,6517,2019,0220,02

*Test results are for guidance only.

Telefon-mobil-SMS

FunkiNet DryFeed is our flexible dry feeding control unit, which is very easy to operate. FunkiNet DryFeed is easily manageable and can be adapted according to individual customer needs and wishes. FunkiNet DryFeed ensures efficient pig production: one click - and you are in full control.

  • Possible to connect with tablet
  • Possible to set up SMS service
